SCRAP
HANDLING

Gauss magneti designs and manufactures electromagnetic lifters and electropermanent lifters for billets and beam blanks, tailored according to the needs of the customer who intends to rationalize internal handling.

contact us
OUR EXPERTS WILL FORMULATE THE MOST SUITABLE OPTION FOR YOUR NEEDS

ApplicaTIONS:

CLEANING WORK IN:

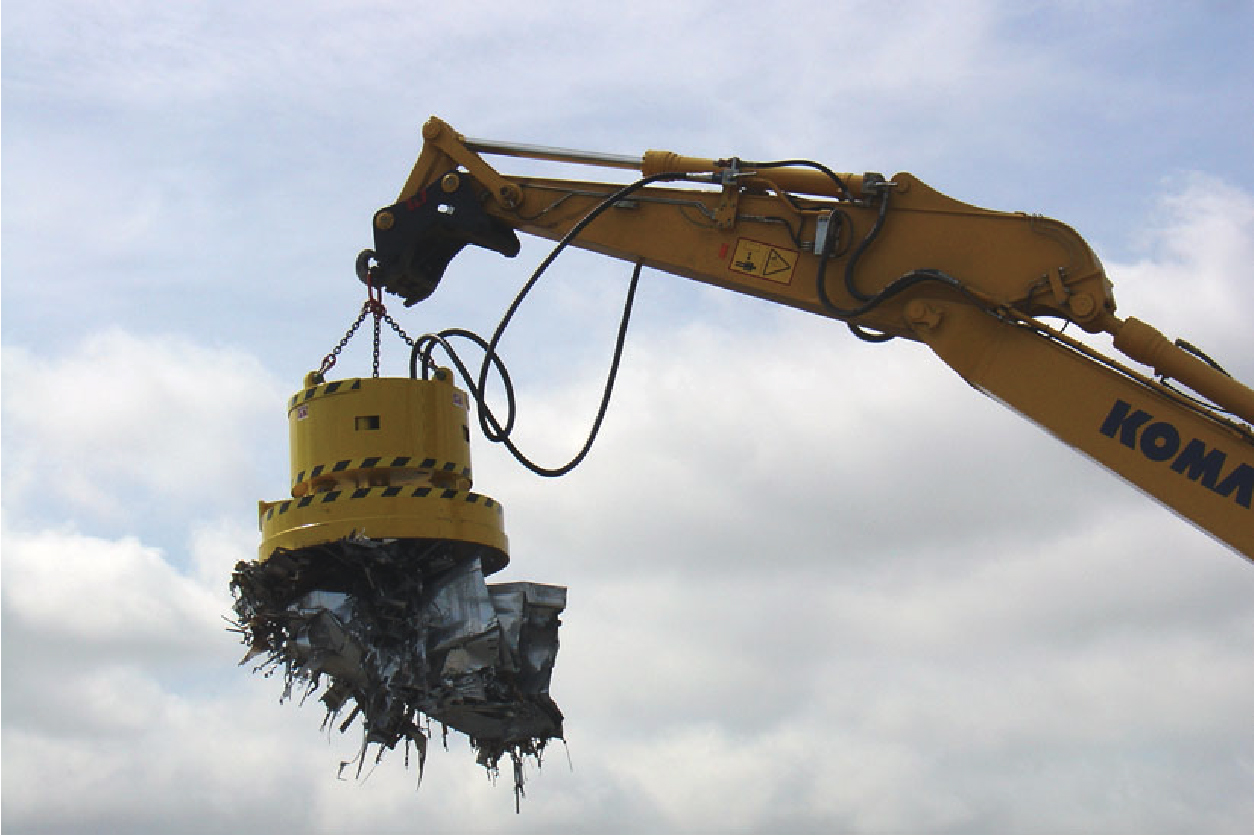

The circular electromagnets can be mounted both on overhead cranes and on self-propelled vehicles, and on request they can be made for hot material (up to 600 ° C) or in an underwater version.

Main features:

+ Casing in laminated steel with high magnetic permeability with deep welds.
+ Winding in aluminum, electrolytic copper or anodized aluminum tape, made with very low current density, for effective dispersion of the heat generated by the Joule effect.
+ Class 250 insulation (> 250 ° C according to IEC 60085 standard);
+ Mn steel bottom plate at 12%.
+ Spark gap protection device.
+ Three leg chains with steel grade 80 or 100 steel.

For particular applications such as in the case of railway wagon unloading, we have a series of oval-shaped electromagnets.

Circular electromagnets can be provided with fingers. For works in demolition.

How they are powered:

+ From mains through our electronic equipment;
+ From generator driven by hydraulic motor or diesel engine in case of application on self-propelled vehicles (mounted on the back of the machine);
+ From battery installed on board;
+ From a hydraulic generator installed on board it, whose magnetizing and demagnetizing function occurs exclusively by means of the machine’s hydraulic oil. The electromagnet is completely independent and therefore can be used on different machines. The coupling of the electromagnet to the machine can be done by means of a quick coupling or three leg chains with central ring.
